캐드명령어,acad.pgp,단축키(Hot Key, Shot Key)

캐드명령어,acad.pgp,단축키(Hot Key, Shot Key) 내용 공유

사용자 환경(제도 및 주석)

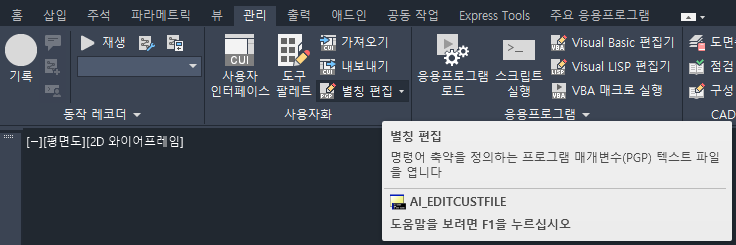

메뉴에서 관리 > 별칭 편집

리본메뉴 선택위치



그래서 나는 명령어로

"AI_" 까지만 치면 자동 완성으로 "AI_EDITCUSTFILE" 나온다.

>> 명령창에 입력하는 경우는 "acad.pgp"라고 파일 명을 입력 해야

캐드에서 사용하는 일반 명령어에 대한 단축 표기 사항이 나온다.

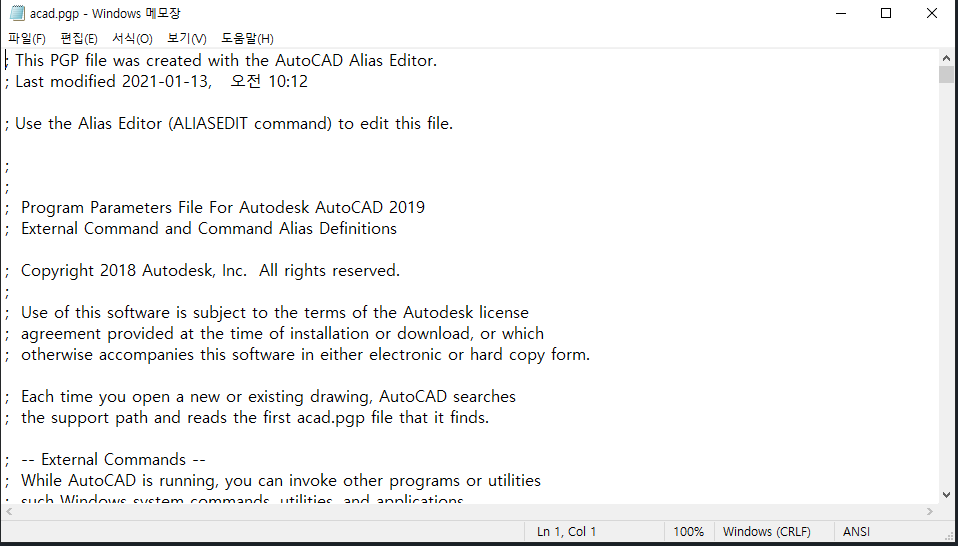

실행 시 첫 화면

기본 설정이 나와 있을 것이다.



L,         *LINE

선을 긋는 "LINE"이란 명령어의 단축키는 "L"이다. 대문자 소문자 상관 없이



그래서 나는 왼손의 움직임을 최대로 고려해서 만들어본 단축 명령어를 항상

Ver. 올라 올 때마다 수정 한다.

Autocad 2000 ~ 2022 현재 까지

그러면서 하나 두게 씩 추가하거나 늘려 간다.



@@@@@@@@@@@@@@@전프로 설정@@@@@@@@@@@@@@@@@@@

; This PGP file was created with the AutoCAD Alias Editor.
; Last modified 2021-01-13,   오전 10:12

; Use the Alias Editor (ALIASEDIT command) to edit this file.

;
;
;  Program Parameters File For Autodesk AutoCAD 2019
;  External Command and Command Alias Definitions

;  Copyright 2018 Autodesk, Inc.  All rights reserved.
;
;  Use of this software is subject to the terms of the Autodesk license
;  agreement provided at the time of installation or download, or which
;  otherwise accompanies this software in either electronic or hard copy form.

;  Each time you open a new or existing drawing, AutoCAD searches
;  the support path and reads the first acad.pgp file that it finds.

;  -- External Commands --
;  While AutoCAD is running, you can invoke other programs or utilities
;  such Windows system commands, utilities, and applications.
;  You define external commands by specifying a command name to be used
;  from the AutoCAD command prompt and an executable command string
;  that is passed to the operating system.

;  -- Command Aliases --
;  The Command Aliases section of this file provides default settings for
;  AutoCAD command shortcuts.  Note: It is not recommended that  you directly
;  modify this section of the PGP file., as any changes you make to this section of the
;  file will not migrate successfully if you upgrade your AutoCAD to a
;  newer version.  Instead, make changes to the new
;  User Defined Command Aliases
;  section towards the end of this file.

;  -- User Defined Command Aliases --
;  You can abbreviate frequently used AutoCAD commands by defining
;  aliases for them in the User Defined Command Aliases section of acad.pgp.
;  You can create a command alias for any AutoCAD command,
;  device driver command, or external command.

;  Recommendation: back up this file before editing it.  To ensure that
;  any changes you make to PGP settings can successfully be migrated
;  when you upgrade to the next version of AutoCAD, it is suggested that
;  you make any changes to the default settings in the User Defined Command
;  Aliases section at the end of this file.

;  External command format:
;  <Command name>,[<Shell request>],<Bit flag>,[*]<Prompt>,

;  The bits of the bit flag have the following meanings:
;  Bit 1: if set, don't wait for the application to finish
;  Bit 2: if set, run the application minimized
;  Bit 4: if set, run the application "hidden"
;  Bit 8: if set, put the argument string in quotes
;
;  Fill the "bit flag" field with the sum of the desired bits.
;  Bits 2 and 4 are mutually exclusive; if both are specified, only
;  the 2 bit is used. The most useful values are likely to be 0
;  (start the application and wait for it to finish), 1 (start the
;  application and don't wait), 3 (minimize and don't wait), and 5
;  (hide and don't wait). Values of 2 and 4 should normally be avoided,
;  as they make AutoCAD unavailable until the application has completed.
;
;  Bit 8 allows commands like DEL to work properly with filenames that
;  have spaces such as "long filename.dwg".  Note that this will interfere
;  with passing space delimited lists of file names to these same commands.
;  If you prefer multiplefile support to using long file names, turn off
;  the "8" bit in those commands.

;  Examples of external commands for command windows

DEL,       DEL,            8,삭제할 파일: ,
DIR,       DIR,            8,파일 지정사항: ,
SH,        ,               1,*OS 명령: ,
SHELL,     ,               1,*OS 명령: ,
START,     START,          1,*시작할 응용프로그램: ,
TYPE,      TYPE,           8,나열할 파일: ,

; Examples of external commands for Windows
; See also the (STARTAPP) AutoLISP function for an alternative method.

EXPLORER,  START EXPLORER, 1,,
NOTEPAD,   START NOTEPAD,  1,*편집할 파일: ,
PBRUSH,    START PBRUSH,   1,,


; Command alias format:
;   <Alias>,*<Full command name>

;  The following are guidelines for creating new command aliases.
;  1. An alias should reduce a command by at least two characters.
;      Commands with a control key equivalent, status bar button,
;      or function key do not require a command alias.
;      Examples: Control N, O, P, and S for New, Open, Print, Save.
;  2. Try the first character of the command, then try the first two,
;      then the first three.
;  3. Once an alias is defined, add suffixes for related aliases:
;      Examples: R for Redraw, RA for Redrawall, L for Line, LT for
;      Linetype.
;  4. Use a hyphen to differentiate between command line and dialog
;      box commands.
;      Example: B for Block, -B for -Block.
;
; Exceptions to the rules include AA for Area, T for Mtext, X for Explode.

;  -- Sample aliases for AutoCAD commands --
;  These examples include most frequently used commands.  NOTE: It is recommended
;  that you not make any changes to this section of the PGP file to ensure the
;  proper migration of your customizations when you upgrade to the next version of
;  AutoCAD.  The aliases listed in this section are repeated in the User Custom
;  Settings section at the end of this file, which can safely be edited while
;  ensuring your changes will successfully migrate.



3A,        *3DARRAY
3DMIRROR,  *MIRROR3D
3DNavigate,*3DWALK
3DO,       *3DORBIT
3DP,    *3DPRINT
3DPLOT,    *3DPRINT
3DW,       *3DWALK
3F,        *3DFACE
3M,        *3DMOVE
3P,        *3DPOLY
3R,        *3DROTATE
3S,        *3DSCALE
A,         *ARC
AC,        *BACTION
ADC,       *ADCENTER
AECTOACAD, *-ExportToAutoCAD
AA,        *AREA
AL,        *ALIGN
3AL,       *3DALIGN
AP,        *APPLOAD
APLAY,     *ALLPLAY
AR,        *ARRAY
-AR,       *-ARRAY
ARR,       *ACTRECORD
ARM,       *ACTUSERMESSAGE
-ARM,      *-ACTUSERMESSAGE
ARU,       *ACTUSERINPUT
ARS,       *ACTSTOP
-ARS,       *-ACTSTOP
ATI,       *ATTIPEDIT
ATT,       *ATTDEF
-ATT,      *-ATTDEF
ATE,       *ATTEDIT
-ATE,      *-ATTEDIT
ATTE,      *-ATTEDIT
B,         *BLOCK
-B,        *-BLOCK
BC,        *BCLOSE
BE,        *BEDIT
BH,        *HATCH
BLENDSRF,  *SURFBLEND
BO,        *BOUNDARY
-BO,       *-BOUNDARY
BR,        *BREAK
BS,        *BSAVE
BVS,       *BVSTATE
C,         *COPY
CAM,       *CAMERA
CBAR,      *CONSTRAINTBAR
CC,         *CIRCLE
CCC,        *CLOSE
CH,        *CHANGE
-CH,       *PROPERTIES
CHA,       *CHAMFER
CHK,       *CHECKSTANDARDS
CL, *CENTERLINE
CLI,       *COMMANDLINE
CM, *CENTERMARK
CMATTACH,  *COORDINATIONMODELATTACH
-CMATTACH,  *-COORDINATIONMODELATTACH
COL,       *COLOR
COLOUR,    *COLOR
CO,        *COPY
CONVTOMESH, *MESHSMOOTH
CP,        *COPY
CPARAM,    *BCPARAMETER
CREASE,    *MESHCREASE
CREATESOLID, *SURFSCULPT
CSETTINGS, *CONSTRAINTSETTINGS
CT,        *CTABLESTYLE
CUBE,      *NAVVCUBE
CURVATUREANALYSIS, *ANALYSISCURVATURE
CYL,       *CYLINDER
D,         *DIMSTYLE
DAL,       *DIMALIGNED
DAN,       *DIMANGULAR
DAR,       *DIMARC
DELETE,    *ERASE
JOG,       *DIMJOGGED
DBA,       *DIMBASELINE
DBB,        *DIMBREAK
DBC,       *DBCONNECT
DC,        *ADCENTER
DCC,        *DIMCONTINUE
DCE,       *DIMCENTER
DCENTER,   *ADCENTER
DCO,       *DIMCONTINUE
DCON,      *DIMCONSTRAINT
DDA,       *DIMDISASSOCIATE
DDEDIT,    *TEXTEDIT
DDI,       *DIMDIAMETER
DDPTYPE,   *PTYPE
DDVPOINT,  *VPOINT
DED,       *DIMEDIT
DELCON,    *DELCONSTRAINT
DH,                                *DIMHORIZONTAL
DI,        *DIST
DIV,       *DIVIDE
DJL,       *DIMJOGLINE
DJO,       *DIMJOGGED
DL,        *DATALINK
DLI,       *DIMLINEAR
DLU,       *DATALINKUPDATE
DO,        *DONUT
DOR,       *DIMORDINATE
DOV,       *DIMOVERRIDE
DR,        *DIMRADIUS
DRA,       *DRAWORDER
DRAFTANGLEANALYSIS, *ANALYSISDRAFTANGLE
DRE,       *DIMREASSOCIATE
DRM,       *DRAWINGRECOVERY
DRO,        *DRAWORDER
DS,        *DSETTINGS
DST,       *DIMSTYLE
DT,        *TEXT
DV,                                *DIMVERTICAL
DVV,        *DVIEW
DX,        *DATAEXTRACTION
E,         *ERASE
ED,        *TEXTEDIT
EE,                 *LAYERP
EL,        *ELLIPSE
ER,        *EXTERNALREFERENCES
ESHOT,     *EDITSHOT
EX,        *EXTEND
EXIT,      *QUIT
EXP,       *EXPORT
EXT,       *EXTRUDE
EXTENDSRF, *SURFEXTEND
F,         *FILLET
FD,         *FIND
FF,         *OFFSET
FI,        *FILTER
FILLETSRF, *SURFFILLET
FREEPOINT, *POINTLIGHT
FSHOT,     *FLATSHOT
G,         *GROUP
-G,        *-GROUP
GCON,      *GEOMCONSTRAINT
GD,        *GRADIENT
GENERATESECTION,  *SECTIONPLANETOBLOCK
GEO,       *GEOGRAPHICLOCATION
GR,        *DDGRIPS
H,         *HATCH
-H,        *-HATCH
HD,                  *LAYOFF
HE,        *HATCHEDIT
HB,        *HATCHTOBACK
HI,        *HIDE
I,         *INSERT
-I,        *-INSERT
IAD,       *IMAGEADJUST
IAT,       *IMAGEATTACH
ICL,       *IMAGECLIP
IM,        *IMAGE
-IM,       *-IMAGE
IMP,       *IMPORT
IN,        *INTERSECT
INSERTCONTROLPOINT, *CVADD
INF,       *INTERFERE
IO,        *INSERTOBJ
ISOLATE,   *ISOLATEOBJECTS
JU,        *JUSTIFYTEXT
QVD,       *QVDRAWING
QVDC,      *QVDRAWINGCLOSE
QVL,       *QVLAYOUT
QVLC,      *QVLAYOUTCLOSE
J,         *JOIN
JOGSECTION,  *SECTIONPLANEJOG
L,         *LINE
LA,        *LAYER
-LA,       *-LAYER
LAS,       *LAYERSTATE
LCC,         *LAYERCLOSE
LE,        *QLEADER
LEN,       *LENGTHEN
LESS,      *MESHSMOOTHLESS
LI,        *LIST
LINEWEIGHT, *LWEIGHT
LK,                  *LAYLCK
LMAN,      *LAYERSTATE
LO,        *-LAYOUT
LON,                 *LAYON
LS,        *LIST
LT,        *LINETYPE
-LT,       *-LINETYPE
LTYPE,     *LINETYPE
-LTYPE,    *-LINETYPE
LTS,       *LTSCALE
LW,        *LWEIGHT
M,         *MOVE
MA,        *MATCHPROP
MAT,       *MATBROWSEROPEN
MC,                  *LAYMCUR
ME,        *MEASURE
MEA,       *MEASUREGEOM
MI,        *MIRROR
MIT,                 *MIRRTEXT
ML,        *MLINE
MLA,       *MLEADERALIGN
MLC,       *MLEADERCOLLECT
MLD,       *MLEADER
MLE,       *MLEADEREDIT
MLS,       *MLEADERSTYLE
MO,        *PROPERTIES
MORE,      *MESHSMOOTHMORE
MOTION,    *NAVSMOTION
MOTIONCLS, *NAVSMOTIONCLOSE
MS,        *MSPACE
MSM,       *MARKUP
MT,        *MTEXT
MV,        *MVIEW
NETWORKSRF,*SURFNETWORK
NORTH,     *GEOGRAPHICLOCATION
NORTHDIR,  *GEOGRAPHICLOCATION
NSHOT,     *NEWSHOT
NVIEW,     *NEWVIEW
O,         *OFFSET
OFFSETSRF, *SURFOFFSET
OP,        *OPTIONS
ORBIT,     *3DORBIT
OS,        *OSNAP
-OS,       *-OSNAP
OK,         *OVERKILL
P,         *PAN
-P,        *-PAN
PA,        *PASTESPEC
RAPIDPROTOTYPE, *3DPRINT
PAR,       *PARAMETERS
-PAR,      *-PARAMETERS
PARAM,     *BPARAMETER
PARTIALOPEN, *-PARTIALOPEN
PATCH,     *SURFPATCH
PCATTACH,  *POINTCLOUDATTACH
PTW,       *PUBLISHTOWEB
EPDFSHX,    *PDFSHX
PE,        *PEDIT
PG,       *POLYGON
PL,        *PLINE
PO,        *POINT
POFF,      *HIDEPALETTES
POINTON,   *CVSHOW
POINTOFF,  *CVHIDE
POL,       *POLYGON
PON,       *SHOWPALETTES
PPP,        *xiAutoPlot
PR,        *PROPERTIES
PRCLOSE,   *PROPERTIESCLOSE
PROPS,     *PROPERTIES
PRE,       *PREVIEW
PRINT,     *PLOT
PS,        *PSPACE
PSOLID,    *POLYSOLID
PU,        *PURGE
-PU,       *-PURGE
PYR,       *PYRAMID
Q,                    *OPEN
QC,        *QUICKCALC
QCUI,      *QUICKCUI
QP,        *QUICKPROPERTIES
QS,                   *QSAVE
R,          *ROTATE
RA,        *REDRAWALL
RC,        *RENDERCROP
RCC,                  *REFCLOSE
RE,        *REGEN
REA,       *REGENALL
REBUILD,   *CVREBUILD
REC,       *RECTANG
RED,         *REDRAW
REFINE,    *MESHREFINE
REG,       *REGION
REMOVECONTROLPOINT, *CVREMOVE
REN,       *RENAME
-REN,      *-RENAME
REV,       *REVOLVE
RO,        *ROTATE
RP,        *RENDERPRESETS
RPR,       *RPREF
RR,        *RENDER
RV,         *REVCLOUD
RW,        *RENDERWINDOW
RY,                 *RAY
S,         *STRETCH
SC,        *SCALE
SCR,       *SCRIPT
SE,        *DSETTINGS
SEC,       *SECTION
SEE,                *LAYISO
SET,       *SETVAR
SHA,       *SHADEMODE
SL,        *SLICE
SMOOTH,    *MESHSMOOTH
SN,        *SNAP
SO,        *SOLID
SP,        *SPELL
SPL,       *SPLINE
SPLANE,    *SECTIONPLANE
SPLAY,     *SEQUENCEPLAY
SPLIT,     *MESHSPLIT
SPE,       *SPLINEDIT
SSM,       *SHEETSET
ST,        *STYLE
STA,       *STANDARDS
SU,        *SUBTRACT
T,         *MTEXT
-T,        *-MTEXT
TA,        *TEXTALIGN
TB,        *TABLE
TEDIT,     *TEXTEDIT
TH,        *THICKNESS
TI,        *TILEMODE
TO,        *TOOLBAR
TOL,       *TOLERANCE
TOR,       *TORUS
TP,        *TOOLPALETTES
TR,        *TRIM
TRX,        *EXTRIM
TS,        *TABLESTYLE
UC,        *UCSMAN
UGRP,                *UNGROUP
ULK,                 *LAYULK
UN,        *UNITS
-UN,       *-UNITS
UNCREASE,  *MESHUNCREASE
UNHIDE,    *UNISOLATEOBJECTS
UNI,       *UNION
UNISOLATE, *UNISOLATEOBJECTS
V,         *VIEW
VGO,       *VIEWGO
VPLAY,     *VIEWPLAY
-V,        *-VIEW
VP,        *VPOINT
-VP,       *-VPOINT
VS,    *VSCURRENT
VSM,       *VISUALSTYLES
-VSM,      *-VISUALSTYLES
W,         *WBLOCK
-W,        *-WBLOCK
WE,        *WEDGE
WHEEL,     *NAVSWHEEL
X,         *EXPLODE
XA,        *XATTACH
XB,        *XBIND
-XB,       *-XBIND
XC,        *XCLIP
XL,        *XLINE
XR,        *XREF
-XR,       *-XREF
Z,         *ZOOM
ZEBRA,     *ANALYSISZEBRA

; The following are alternative aliases and aliases as supplied
;  in AutoCAD Release 13.

AV,        *DSVIEWER
CP,        *COPY
DIMALI,    *DIMALIGNED
DIMANG,    *DIMANGULAR
DIMBASE,   *DIMBASELINE
DIMCONT,   *DIMCONTINUE
DIMDIA,    *DIMDIAMETER
DIMED,     *DIMEDIT
DIMTED,    *DIMTEDIT
DIMLIN,    *DIMLINEAR
DIMORD,    *DIMORDINATE
DIMRAD,    *DIMRADIUS
DIMSTY,    *DIMSTYLE
DIMOVER,   *DIMOVERRIDE
LEAD,      *LEADER
TM,        *TILEMODE

; Aliases for Hyperlink/URL Release 14 compatibility
SAVEURL, *SAVE
OPENURL,   *OPEN
INSERTURL, *INSERT

; Aliases for commands discontinued in AutoCAD 2000:
AAD,        *DBCONNECT
AEX,        *DBCONNECT
ALI,        *DBCONNECT
ASQ,        *DBCONNECT
ARO,        *DBCONNECT
ASE,        *DBCONNECT
DDATTDEF,   *ATTDEF
DDATTEXT,   *ATTEXT
DDCHPROP,   *PROPERTIES
DDCOLOR,    *COLOR
DDLMODES,   *LAYER
DDLTYPE,    *LINETYPE
DDMODIFY,   *PROPERTIES
DDOSNAP,    *OSNAP
DDUCS,      *UCS

; Aliases for commands discontinued in AutoCAD 2004:
ACADBLOCKDIALOG,  *BLOCK
ACADWBLOCKDIALOG, *WBLOCK
ADCENTER,         *ADCENTER
BMAKE,            *BLOCK
BMOD,             *BLOCK
BPOLY,            *BOUNDARY
CONTENT,          *ADCENTER
DDATTE,           *ATTEDIT
DDIM,             *DIMSTYLE
DDINSERT,         *INSERT
DDPLOTSTAMP,      *PLOTSTAMP
DDRMODES,         *DSETTINGS
DDSTYLE,          *STYLE
DDUCS,            *UCSMAN
DDUCSP,           *UCSMAN
DDUNITS,          *UNITS
DDVIEW,           *VIEW
DIMHORIZONTAL,    *DIMLINEAR
DIMROTATED,       *DIMLINEAR
DIMVERTICAL,      *DIMLINEAR
DOUGHNUT,         *DONUT
DTEXT,            *TEXT
DWFOUT,           *PLOT
DXFIN,            *OPEN
DXFOUT,           *SAVEAS
PAINTER,          *MATCHPROP
PREFERENCES,      *OPTIONS
RECTANGLE,        *RECTANG
SHADE,            *SHADEMODE
VIEWPORTS,        *VPORTS
EDWFX,            *EXPORTDWFX
EDWF,             *EXPORTDWF
EPDF,             *EXPORTPDF
-QPUB,            *-EXPORT
; Aliases for commands discontinued in AutoCAD 2007:
RMAT,      *MATBROWSEROPEN
FOG,       *RENDERENVIRONMENT
FINISH,    *MATERIALS
SETUV,     *MATERIALMAP
SHOWMAT,   *LIST
RFILEOPT,  *RENDERPRESETS
RENDSCR,   *RENDERWINDOW


; Aliases for sysvars discontinued in AutoCAD 2013:
RASTERPREVIEW,      *THUMBSAVE
AUTOCOMPLETE,       *-INPUTSEARCHOPTIONS
AUTOCOMPLETEMODE,   *-INPUTSEARCHOPTIONS
AUTOCOMPLETEDELAY,  *INPUTSEARCHDELAY

; Aliases for commands discontinued in AutoCAD 2014:
3DCONFIG,           *GRAPHICSCONFIG
-3DCONFIG,          *-GRAPHICSCONFIG

;  -- User Defined Command Aliases --
;  Make any changes or additions to the default AutoCAD command aliases in
;  this section to ensure successful migration of these settings when you
;  upgrade to the next version of AutoCAD.  If a command alias appears more
;  than once in this file, items in the User Defined Command Alias take
;  precedence over duplicates that appear earlier in the file.
;  **********----------**********  ; No xlate ; DO NOT REMOVE





@@@@@@@@@@@@@@@   끝   @@@@@@@@@@@@@@@@@@@



아마 비교해서 많이 다르지 않을 것이다. 사용자 특성에 따른 추가 또는 조정일 거 같은데

나는 도면을 주로 작성하기 위해 사용하는 명령어를 줄었다.



예를 들어 저장하면서 캐드(Autocad)를 종료하는 명령어 "CLOSE"

CCC,        *CLOSE



간격을 뛰우는 명령어의 경우 기존것도 가지고 있고

O,         *OFFSET

FF,         *OFFSET



"FF"를 추가해서 바로 옵셉명령을 입력 할 수 있게 하는 것이다.



왼손이 명령어 때리는 일이 마우스 잡고 있는 오른손이 모르게 하라



저장하고 캐드를 껏다 켜야 적용 되지만

REINT 명령어를 실행하고

PGP파일 선택화면

PGP를 선택하서 바로 적용해서 써 먹자!

PGP 명령어 단축을 위해 수정한 파일이 acad.pgp 인 것이다.



자 기계식 키보드로 하루 종일 신나게

스타하듯이 게임 리듬을 방안 가득 울려라.

따닥 또각 탁 도도도!

L 스페이스 클릭클릭 스페이스 ESC 연타3번



튕겨라 리듬을 쒼나게

게임에만 프로가있는게 아니라 여기에 도 있다.
